Precision Polymer Ball Manufacturer

Precision PTFE Ball & PEEK Ball Manufacturer

Precision-ground PTFE balls and PEEK balls for check valves, ball valves, flow meters, bearings, float balls, non-return valves, downhole frac balls, and well completion tools. CNC-machined solid PTFE balls, PTFE valve balls, PTFE bearing balls, PTFE frac balls, and PTFE float balls from 2mm to 150mm diameter. Grade G10 to G100, sphericity down to 0.001mm. ISO 9001 certified, serving chemical processing, oil & gas downhole, fluid handling, instrumentation, pharmaceutical, and industrial equipment industries worldwide.

Request a Quote View Material Specs

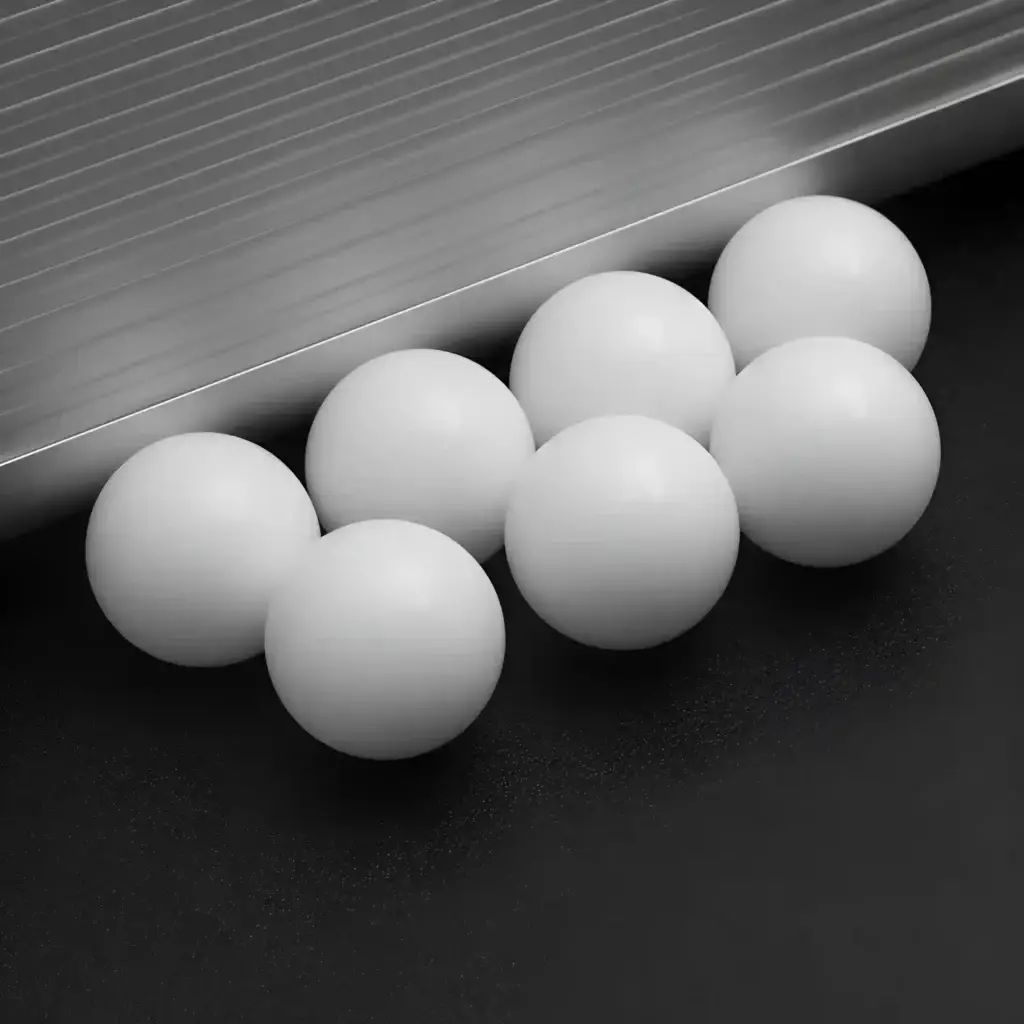

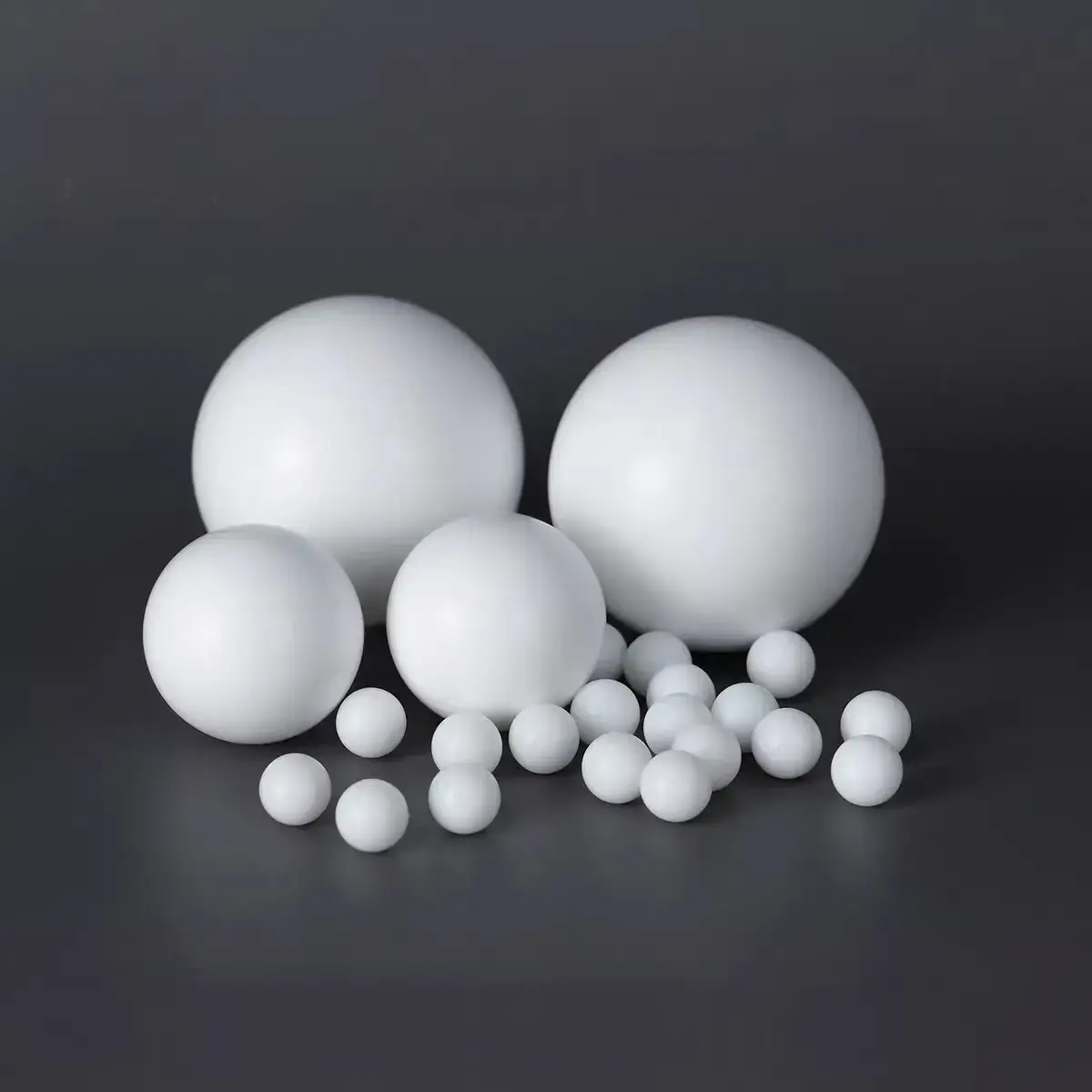

Precision-ground PTFE and PEEK balls for check valves, flow meters, and bearing applications

Materials & Specifications

Ball Material Options & Precision Grades

We precision-grind balls from 4 engineering polymers to tight sphericity and surface finish standards. Material selection depends on your chemical environment, temperature, and mechanical requirements. Our engineers will recommend the optimal grade for your application.

Material	Key Property	Best For
PTFE (Teflon)	Universal chemical resistance, low friction, -200°C to +260°C	Check valve balls, chemical-resistant ball valves
PEEK	260°C continuous, high mechanical strength, steam resistant	High-pressure ball valves, frac balls, bearing balls
PVDF (Kynar)	Excellent UV & radiation resistance, good chemical resistance	Outdoor flow meters, water treatment equipment
Nylon (PA66)	Good mechanical strength, vibration damping, economical	General bearing balls, low-load check valves, cost-sensitive
Acetal (POM)	High stiffness, excellent dimensional stability, low moisture absorption	Precision flow meter balls, metering pump balls, tight-tolerance
UPE (UHMWPE)	Exceptional abrasion resistance, self-lubricating, impact resistant, -200°C to +80°C	Slurry check valve balls, wear-resistant ball valves, mining & dredging

Ball Precision Specs

Diameter Range2mm – 150mm
GradeG10 – G100
SphericityDown to 0.001mm
Surface FinishRa 0.2μm (mirror polish available)
Material OptionsPTFE, PEEK, PVDF, Nylon, Acetal, UPE
MOQ1 pc (prototype), 100+ (production)
Lead Time7–15 days standard, 3–5 days expedited
CertificationISO 9001, FDA, USP Class VI, RoHS

PTFE Ball Types We Manufacture

PTFE Check Valve Ball

PTFE Ball Valve Ball

PTFE Float Ball

PTFE Bearing Ball

PTFE Flow Meter Ball

Solid PTFE Ball (Rod-Machined)

PTFE Frac Ball (Downhole)

PTFE Well Completion Ball

PTFE Non-Return Valve Ball

Custom PTFE Ball

Product Gallery

Precision-Ground Polymer Ball Projects

Precision-ground PTFE check valve ball G25 grade sphericity 0.0025mm

PTFE ball valve ball 50mm diameter for chemical processing

Large 100mm PTFE float ball for industrial level sensor

Solid PTFE bearing ball mirror polish Ra 0.2μm

Small 5mm PTFE ball for precision flow meter and instrumentation

Batch of PTFE balls G50 grade for industrial non-return valve

Applications

Industries Relying on Our Precision Balls

Check Valves

PTFE and PEEK check valve balls for chemical dosing pumps, backflow prevention, and one-way flow control — chemically inert and non-stick surface prevents media buildup.

Flow Meters

Precision-grade PEEK and PVDF balls for rotameters and variable-area flow meters — consistent specific gravity and sphericity for accurate flow measurement.

Oil & Gas Downhole Tools

PEEK and PTFE frac balls for hydraulic fracturing, well completion ball drop systems, and downhole sliding sleeve actuation — high-pressure resistant, chemically inert to frac fluids and acidizing chemicals.

Bearings & Ball Valves

High-grade PTFE and PEEK balls for corrosion-resistant bearings and full-port ball valves in chemical plants, water treatment, and food processing equipment.

Why Choose Our Precision Balls

Engineered for Spherical Precision

Sub-Micron Sphericity

Sphericity down to 0.001mm for G10 grade balls — measured on Zeiss CMM with roundness verification for every production batch.

Full Size Range

From miniature 2mm balls for precision instruments to large 150mm balls for industrial ball valves — one reliable source for all your ball needs.

Material Certification

Full material traceability with batch-specific certificates. FDA, USP Class VI, and RoHS documentation available for regulated industry applications.

Sample Before Production

We ship pre-production samples for your fitment and performance testing. Mass production begins only after your written approval.

Common Questions

Precision Ball Manufacturing FAQ

What types of PTFE balls do you manufacture? +

We manufacture a wide range of PTFE balls including: PTFE check valve balls for chemical dosing pumps, PTFE ball valve balls for corrosive fluid shut-off, PTFE frac balls and well completion balls for oil & gas downhole fracturing, PTFE float balls for level sensors and tank gauges, solid PTFE bearing balls for low-friction rotary applications, PTFE flow meter balls for rotameters and variable-area meters, PTFE non-return valve balls for backflow prevention, and custom-diameter PTFE balls to your specification. Diameters from 2mm to 150mm, grades G10 to G100. PEEK balls also available for high-temperature, high-pressure, and high-strength downhole applications.

What ball grade do I need for my application? +

G10-G25 (sphericity 0.001-0.0025mm) is recommended for precision instruments, flow meters, and high-performance check valves. G50-G100 (sphericity 0.005-0.01mm) is suitable for general industrial ball valves, bearings, and fluid handling. Our engineers will help you select the right grade based on your sealing and functional requirements.

Can you produce balls in custom diameters not listed in standard sizes? +

Yes. We precision-grind balls to any diameter between 2mm and 150mm — no need to compromise on a "close enough" standard size. Simply specify your exact diameter and tolerance, and we'll machine to your requirement.

PTFE vs PEEK — which material is better for check valve balls? +

PTFE is the best choice for universal chemical resistance and low-friction sealing — ideal for most chemical check valve applications. PEEK is preferred when the ball sees high mechanical loads, elevated temperatures (up to 260°C), or steam service. Our engineers will recommend based on your specific media, pressure, and temperature profile.

What is your minimum order quantity for precision balls? +

We support prototype orders starting from 1 piece for design validation. Production quantities start at 100 pieces per size, with volume pricing discounts at 1,000+ and 10,000+ piece quantities. We also offer consignment stock programs for repeat orders.

Can you supply PTFE and PEEK balls for oil & gas frac applications? +

Yes. We manufacture PEEK and PTFE frac balls for hydraulic fracturing operations, ball-activated sliding sleeves, and downhole well completion tools. Our PEEK frac balls offer high compressive strength for seating pressures up to 70 MPa, excellent chemical resistance to frac fluids and acidizing chemicals, and consistent sphericity for reliable ball-to-seat sealing. PTFE frac balls provide superior chemical inertness for corrosive downhole environments. Custom diameters and tight tolerance grades available — contact Leon with your frac ball specification.

Do you provide sphericity and surface finish inspection data? +

Yes. Every production batch includes CMM sphericity measurement reports and surface roughness (Ra) data. For critical applications, we can provide individual ball inspection certificates with full dimensional traceability.

Request a Quote for Your Precision Balls

Get in Touch

Start Your Precision Ball Project Today

Send us your diameter, tolerance, and material requirements. Our engineers will review and respond with a detailed quote within 24 hours.

I work directly with engineers and buyers on precision ball projects. I'll personally review your diameter and tolerance requirements, recommend the optimal polymer and grade, and follow up on your quote.

Chat with Leon on WhatsApp

What We'll Check For Your PTFE Ball

✓ Diameter & tolerance (2mm-150mm)

✓ Sphericity grade (G10-G100)

✓ PTFE vs PEEK material recommendation

✓ Surface finish & polish requirement

✓ Application type (check valve/float/bearing)

✓ Quantity & lead time optimization

🔒 Your drawings and project information are kept confidential. NDA available on request.
