Industrial Sealing Components

Custom PTFE Gasket Manufacturer

CNC-machined and die-cut PTFE, expanded PTFE & filled PTFE gaskets. Custom flange dimensions, tight tolerances, and chemical resistance for pipelines, reactors, and heat exchangers.

Request a Quote View Material Specs

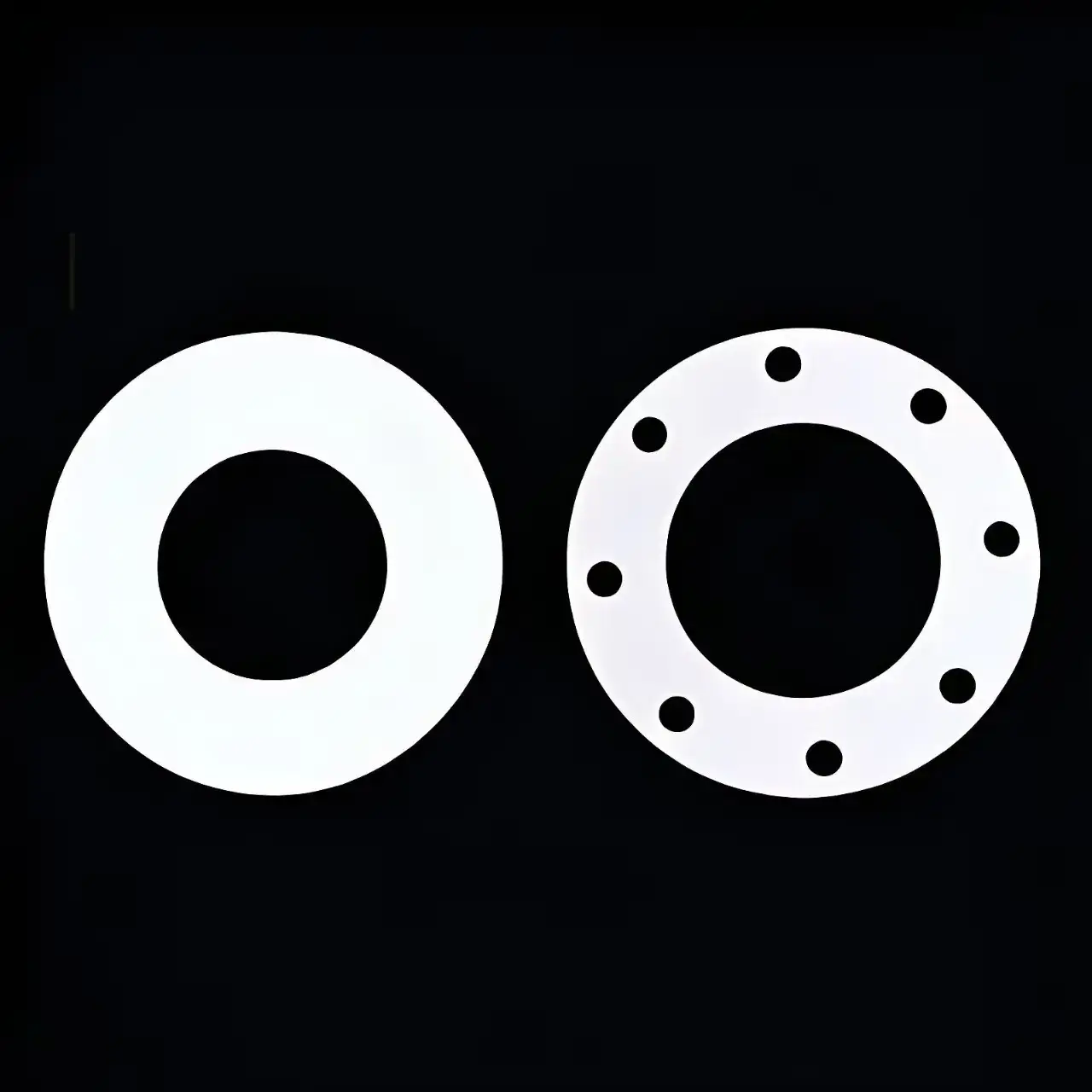

Custom PTFE gasket for industrial flange sealing

Materials & Specifications

Gasket Material Options & Machining Capabilities

Material	Key Property	Best For
PTFE	Universal chemical resistance, -200°C to +260°C	Chemical flange gaskets, acid service
Expanded PTFE	Highly compressible, conforms to irregular surfaces	Glass-lined flanges, damaged flange faces
RPTFE (15% Glass)	Reduced cold flow, better creep resistance	High-pressure flange connections
RPTFE (Carbon-Graphite)	Anti-static, improved thermal conductivity	Flammable media, chemical plants
PEEK	260°C continuous, high mechanical strength	High-temperature steam gaskets

Machining Capabilities

Thickness0.5mm – 15mm
Max DiameterUp to 1500mm
Tolerance±0.05mm
TypeFull-face, IBC, ring, custom shape
MOQ1 pc (prototype), 50+ (production)
CertificationISO 9001, FDA, EN 13555

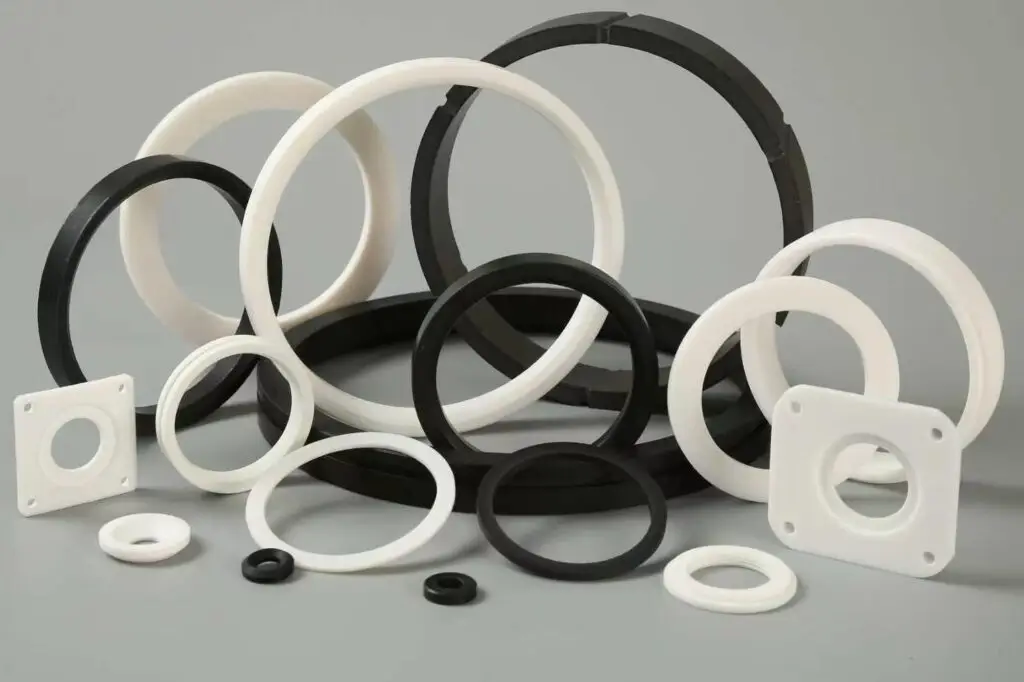

Product Gallery

Recent Gasket Projects

Applications

Industries Using Our Gaskets

Chemical Plants

PTFE gaskets for pipe flanges, reactor lids, and heat exchanger connections in corrosive chemical service.

Oil & Gas Refineries

High-temperature PEEK & carbon-filled RPTFE gaskets for refinery piping systems and pressure vessels.

Pharmaceutical

FDA-compliant PTFE gaskets for sanitary flange connections in drug manufacturing and sterile processing.

Why Our Gaskets

Engineered for Perfect Sealing

Custom Dimensions

We match your exact flange dimensions, bolt circle, and thickness — no "standard sizes only" limitation.

Complex Shapes

Oval, rectangular, manway, and multi-bolt-hole gaskets — CNC-machined from sheet or directly turned from rod.

Material Match

We recommend the right polymer based on your media, temperature, and pressure — not just "send us a drawing."

Sample First

1-5 pre-production samples for your on-site fitment test. Full production only after your approval.

Common Questions

Gasket Manufacturing FAQ

Can you make non-standard gasket shapes? +

Yes. We CNC-machine oval, rectangular, manway, and custom-shaped gaskets. Send us your flange drawing or gasket sample and we'll replicate any shape.

What is the difference between PTFE and expanded PTFE gaskets? +

Expanded PTFE (ePTFE) is highly compressible and conforms to irregular or damaged flange surfaces, making it ideal for glass-lined equipment. Solid PTFE gaskets offer better chemical resistance and dimensional stability for precision applications.

What is your minimum order quantity for custom gaskets? +

We accept orders from 1 piece for prototypes and testing. Production orders typically start at 50 pieces, with volume discounts available for 500+.

How quickly can you deliver custom gaskets? +

Standard lead time is 7-12 days. Urgent orders can ship in 3-5 days. We also offer consignment stock programs for recurring gasket needs.

Request a Quote for Your Gasket

Get in Touch

Start Your Gasket Project Today

Send me your flange dimensions, gasket drawing, or sample. I'll recommend the optimal polymer material and provide a detailed quote within 24 hours.

Chat with Leon on WhatsApp

What We'll Check For Your Gasket

✓ Flange standard (ANSI/DIN/JIS)

✓ Media chemical compatibility

✓ Temperature & pressure rating

✓ Bolt circle & hole layout
