Precision Valve Components

Custom PTFE & PEEK Valve Seat Manufacturer

CNC-machined ball valve seats for high-pressure, corrosive, and high-temperature applications. ISO 9001 certified, tolerances down to ±0.01mm. Serving chemical plants, oil & gas, and pharmaceutical industries worldwide.

Request a Quote View Material Specs

Custom CNC-machined PEEK ball valve seat for industrial high-pressure valve assembly

Materials & Specifications

Valve Seat Material Options & Machining Capabilities

We machine valve seats from 8 engineering-grade polymers. Material selection depends on your operating temperature, pressure, media type, and cycle frequency. Not sure which material fits? Our engineers will recommend based on your working conditions.

Material	Key Property	Best For
PTFE (Teflon)	Universal chemical resistance, -200°C to +260°C, low friction	Corrosive chemical ball valves, acid service
RPTFE (15% Glass Filled)	Improved creep resistance, 40% less thermal expansion vs virgin PTFE	High-cycle ball valves, steam service, thermal cycling
RPTFE (Carbon-Graphite)	Better thermal conductivity, dissipates static charge	High-temperature cycling, anti-static valve seats
PEEK	260°C continuous, excellent mechanical strength, steam resistant	High-pressure steam valves, oil & gas, downhole
PCTFE (Kel-F)	Near-zero moisture absorption, cryogenic stable to -240°C	Cryogenic & liquid oxygen (LOX) valve service
UHMWPE	Exceptional abrasion resistance, self-lubricating	Slurry valves, solids-handling, mining
PFA	Higher purity than PTFE, better stress-crack resistance	Semiconductor, ultra-pure chemical delivery valves
PVDF (Kynar)	Excellent UV, gamma radiation & weathering resistance	Outdoor valves, nuclear service, chlorine handling

Machining Capabilities

Tolerance±0.01mm
Size RangeØ5mm – Ø500mm
Surface FinishRa 0.4μm (mirror finish available)
Sealing SurfaceFlat, V-port, parabolic, custom profile
MOQ1 pc (prototype), 100+ (production)
Lead Time7–15 days standard, 3–5 days expedited
CertificationISO 9001:2015, FDA, USP Class VI, NORSOK

Product Gallery

CNC-Machined Valve Seat Projects

PEEK ball valve seat CNC machined with ±0.01mm tolerance

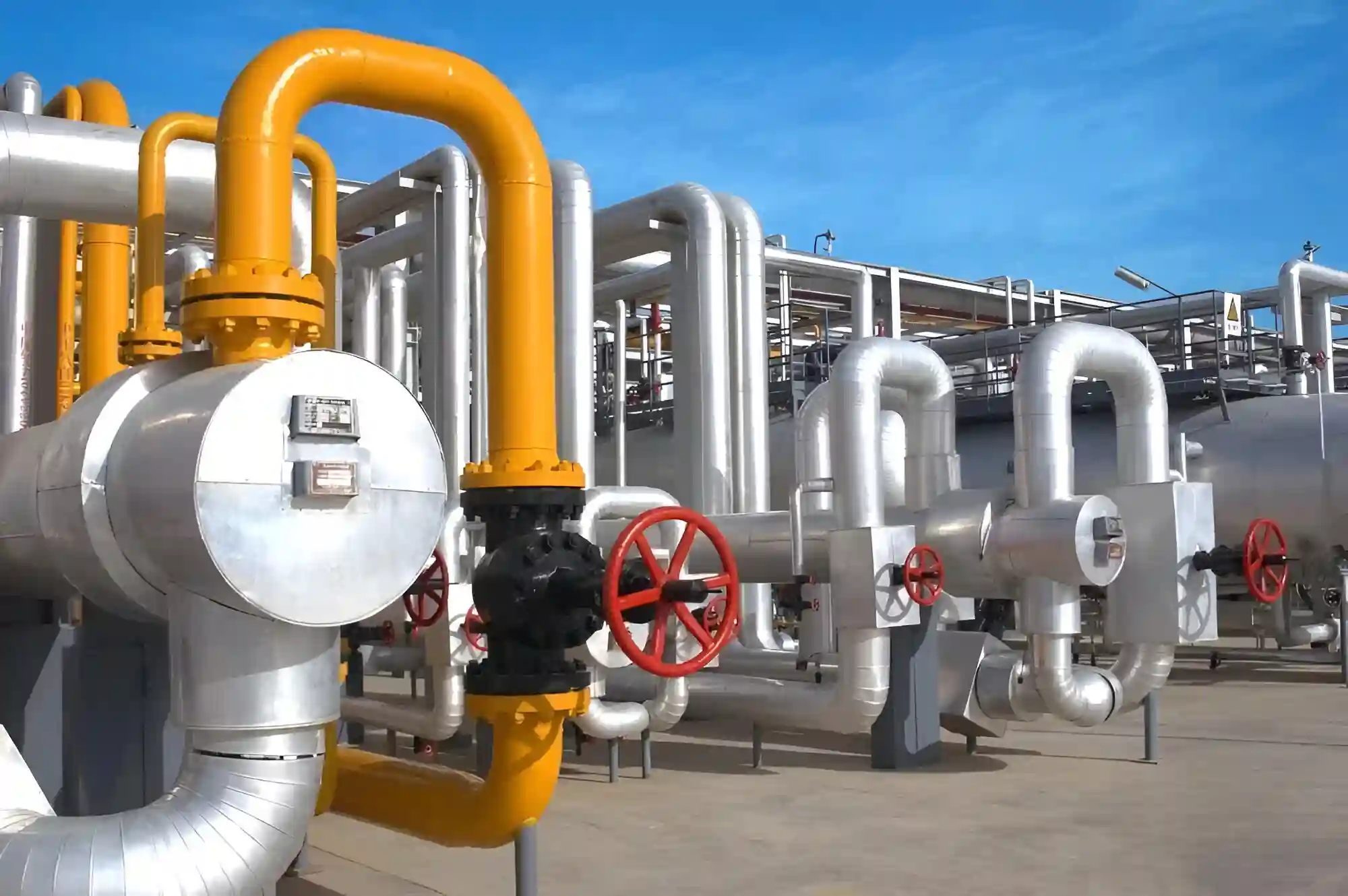

PTFE valve seat for industrial ball valve - chemical resistant

Carbon fiber reinforced PTFE sealing component for high pressure valve

Precision CNC machined PEEK industrial valve components

PTFE precision machined bushing and valve seat blank

Custom PTFE machined parts including valve seats and seals

Applications

Industries Relying on Our Valve Seats

Chemical Processing

PTFE & RPTFE valve seats for ball valves handling sulfuric acid, hydrochloric acid, solvents, and aggressive chemical media at processing plants worldwide.

Oil & Gas

High-pressure PEEK & carbon-filled RPTFE seats for upstream and downstream valve assemblies in extreme temperature and pressure environments.

Pharmaceutical & Food

USP Class VI & FDA compliant PTFE seats for sanitary ball valves in drug manufacturing, food processing, and sterile clean-in-place (CIP) systems.

Why Choose Our Valve Seats

Engineered for Zero-Leakage Performance

DFM Review Before Production

Our engineers review your valve seat drawing for manufacturability, suggesting material and tolerance optimizations before cutting begins.

Thermal Creep Compensation

We pre-compensate for PTFE cold flow and thermal expansion in the machining stage, ensuring your valve seat maintains sealing integrity after installation.

100% CMM + Leak Testing

Every batch undergoes CMM dimensional verification and optional helium leak testing for critical-service valve seats.

Sample Before Mass Production

We ship 1-5 pre-production samples for your on-site fitment test. Production proceeds only after your written approval.

Common Questions

Valve Seat Manufacturing FAQ

Can you match an existing valve seat sample or drawing? +

Yes. Send us your sample, CAD drawing, or even a photo with dimensions. We reverse-engineer the exact geometry and recommend the optimal polymer material for your operating conditions — whether PTFE, RPTFE, PEEK, or PCTFE.

What material is best for high-temperature valve seats? +

PEEK is the top choice for continuous service up to 260°C, especially in steam and high-pressure applications. For temperatures with aggressive chemicals, carbon-filled RPTFE offers an excellent balance of thermal stability and chemical resistance.

What is your minimum order quantity for custom valve seats? +

We support prototype orders starting from 1 piece. Small batch (10-50 pcs) and full production runs (1,000+) are all welcome. We scale with your needs — sample validation first, then ramp up.

How do you guarantee zero-leakage sealing performance? +

Our quality process includes: (1) Material certification with batch traceability, (2) In-process CMM inspection at key machining stages, (3) 100% dimensional final inspection, and (4) optional helium leak testing for critical-service valve seats. Full FAI reports provided with every order.

What are the lead times for custom valve seat orders? +

Standard lead time is 7-15 days depending on material availability and complexity. Urgent projects can be expedited to 3-5 days. We also offer buffer stock programs for repeat orders — ask Leon about setting up a consignment stock.

Do you provide material certificates and compliance documentation? +

Absolutely. Every shipment includes full material traceability certificates. FDA, USP Class VI, NORSOK M-710, and NACE TM0297 certifications are available upon request for regulated industries.

Request a Quote for Your Valve Seat

Get in Touch

Start Your Valve Seat Project Today

Send us your drawing, CAD file, or sample photo. Our engineers will review and respond with a detailed quote within 24 hours.

I work directly with engineers and buyers on custom valve seat projects. I'll personally review your drawing, recommend the best polymer material for your operating conditions, and follow up on your quote.

Chat with Leon on WhatsApp

What We'll Check For Your Valve Seat

✓ Sealing surface geometry

✓ Material compatibility (media + temp)

✓ Thermal expansion allowance

✓ Tolerance vs. mating parts

✓ Creep & cold flow compensation

✓ Prototype → production scaling

🔒 Your drawings and project information are kept confidential. NDA available on request.
